Grate Fence
| Material: | Low carbon steel |
| Feature: | Being tidy and beautiful |
| Application: | Railway, express highway |
More Details
Product Description

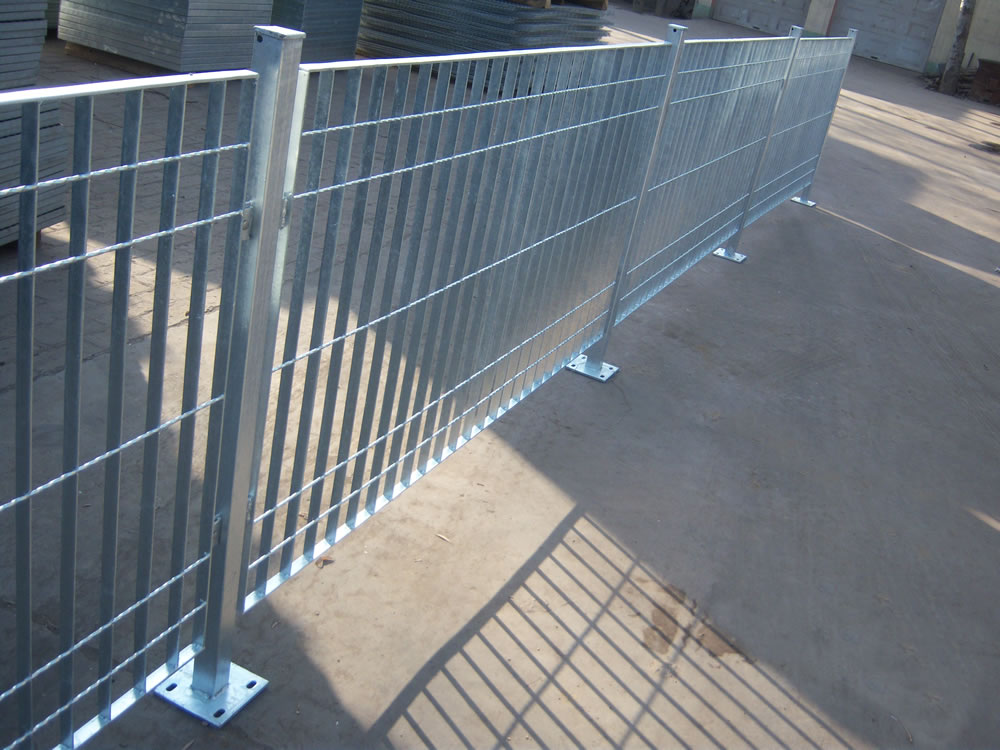

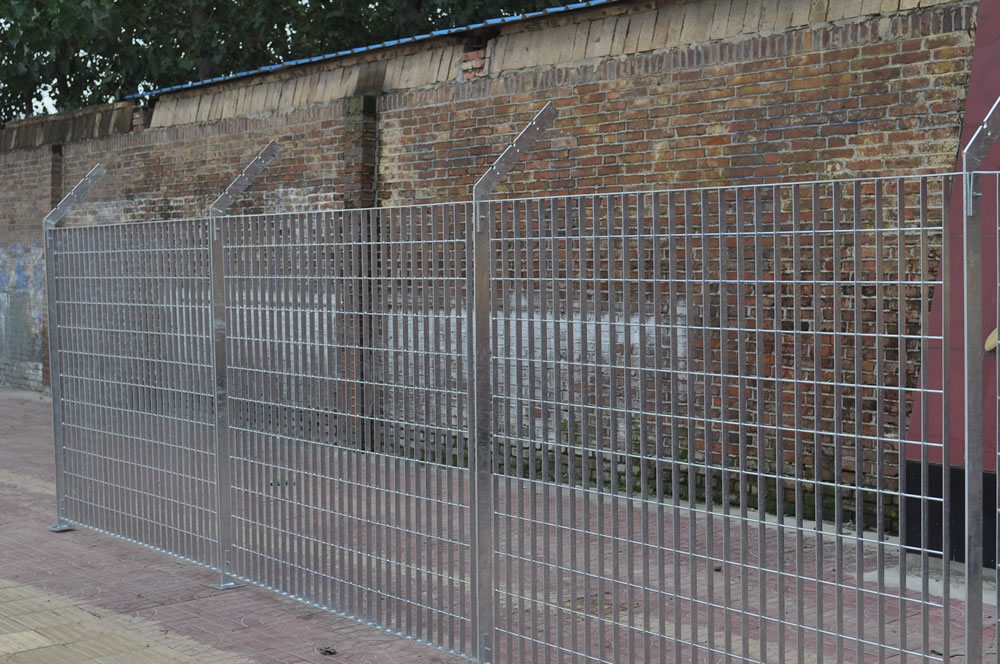

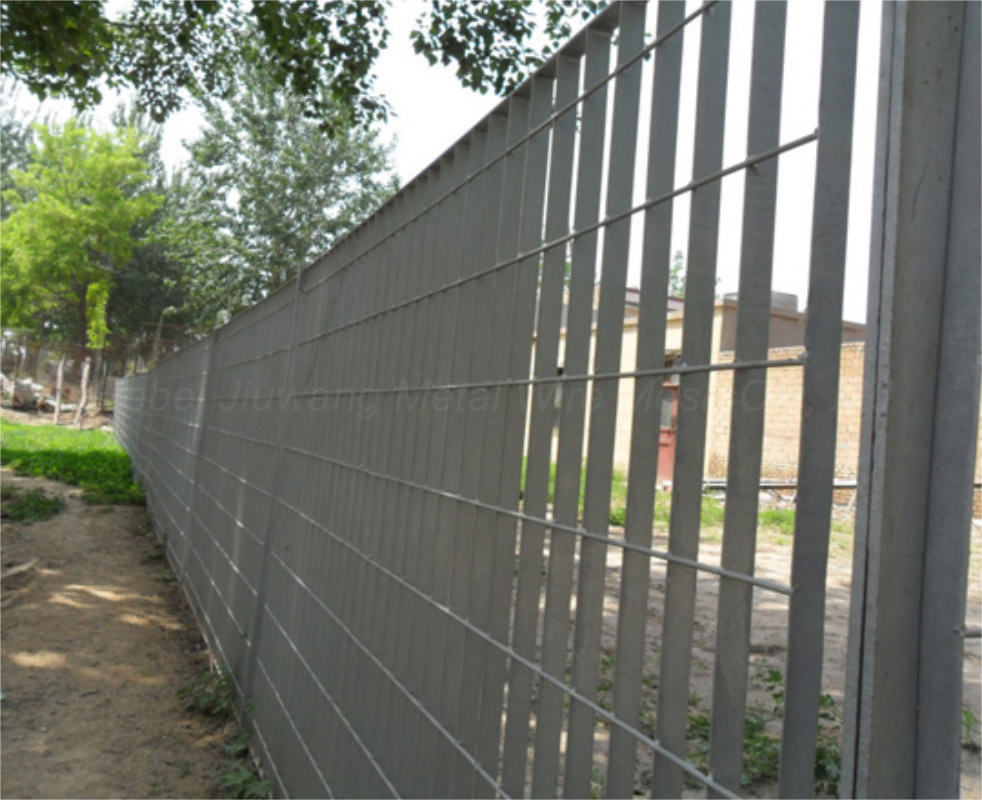

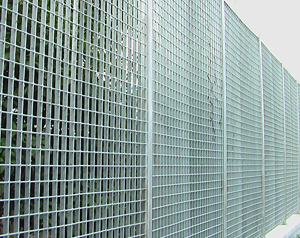

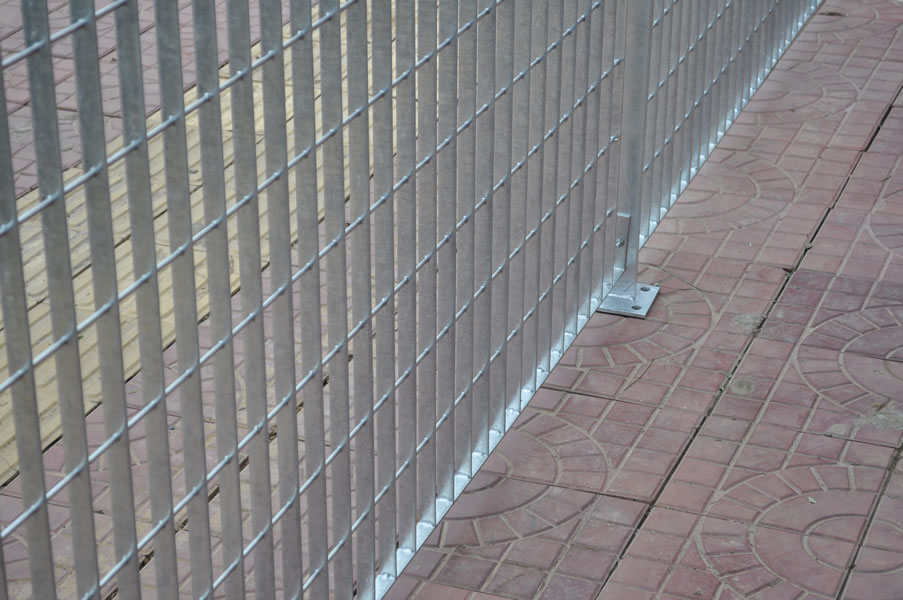

Steel grating fence
Using the steel grating to design manufacture, surface hot dip galvanizing, being tidy and beautiful, high strength, corrosion and duralble, concise construction, free paint maintenance. Used in power plant, railway, express highway, sewage treatment, tap water, mines, iron and steel, petrochemistry airport, dock, and all kinds of industrial and civil architecture.
Specification
Steel grating: bearing bar section size: 32x5mm, bearing bar pitch 90mm, cross pitch 400mm and 100mm combination.
Also can use other specifications of the steel grating.
Collumn type: C expresses suqare steel collumn omit expresses to building cement collumn in site.
Surface treatment: G expresses hot galvanization, omit expresses not to make any treatment.
Steel grating fence data sheet:
| Product Name | Steel grating fence |
| Material | Low carbon steel / Stainless steel |
| Grade | CN: Q235, Q345, USA: A36, UK: 43A |
| Standard | CN: YB/T4001-1998, USA: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS |
| Certification | CE, GOST, ISO9001, ISO14001, HSE |
| Bearing bar size | 20X5, 25X3, 25X4, 25X5, 30X3, 30X4, 30X5, 32X3, 32X5, 40X5, 50X4... 75X8, 100X8mm, etc |
| Bearing bar pitch | 20,25,30,32.5,34.3,40,50,60,62,65mm |
| Bearing bar type | Plain, Serrated (tooth-like), I bar (I section), Serrated-I |
| Cross bar size | 5X5, 6X6, 8X8mm (twisted bar)/5, 6, 8mm ( round bar) |
| Cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc. |
| Panel size | 3x20ft,3x24ft,3x30ft,5800x1000,6096x1000,7315x1000, as request |
| Surface treatment | Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers’ requirement. |
| Galvanization Standard | CN: GB/T13912, USA: ASTM (A123), UK: BS729 |
| Color | Silver/Black |
| Application | petroleum and chemical, port, power, transportation, papermaking, medicine, steel and iron, food, municipality, real estate, manufacturing |
