Grating Platform
| Material: | Low carbon steel |
| Feature: | High strength, light structure |
| Application: | Power plants, boilers, shipbuilding platforms |
More Details
Product Description
Platform Channel Gratings are made of aluminum or steel alloy bar structure panels with big bar spacing and strong ability of anti-side shocking. Can be supplied with checkered plate shielding, installation connectors and other accessories.

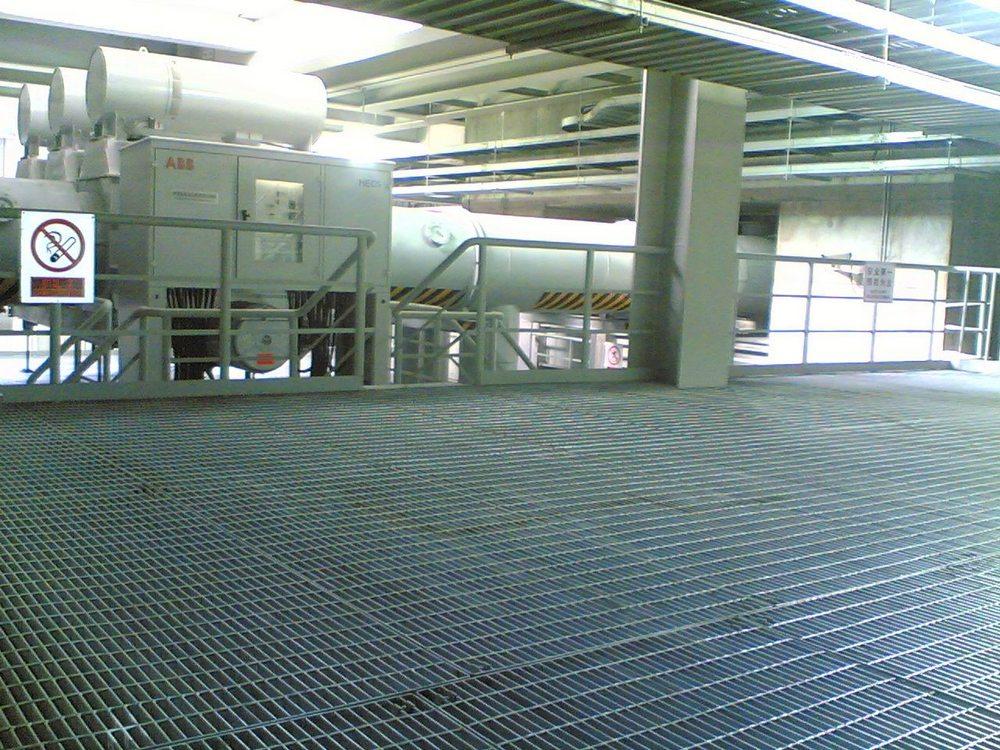

Platform Steel Gratings are new building materials used in construction of power plants, boilers, shipbuilding, petrochemical, chemical and general plant room, municipal construction and other industries. The steel bar grating platform structures enjoy good air and light ventilation, non-slip property, good bearing capacity, easy cleaning and installation.

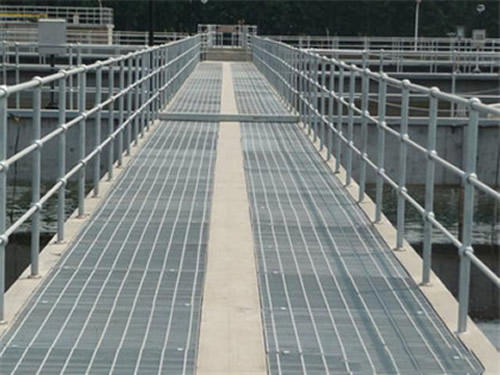

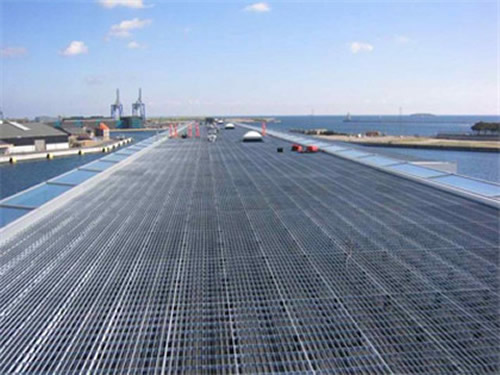

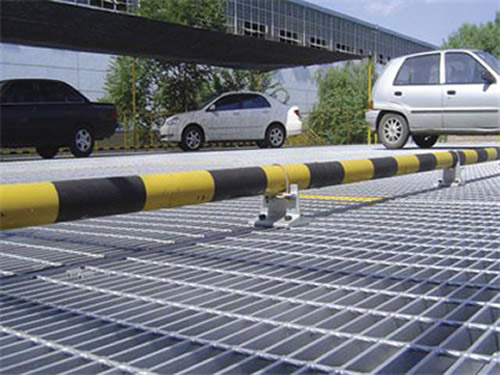

Platform Gratings are universally used in most general industrial plants as well as commercial buildings, as walkways, platforms, safety barriers, drainage covers and ventilation grates. Welded Steel Bar Grating is the most popular of all grating platform types due to its strength, cost-efficient production and ease of installation.
Features
1.High strength, light structure: solid grid pressure welding structure has advantages of high load, light structure, easy installation, etc.
2. Fine appearance, durable in use: hot zinc dipping surface treatment makes it own fairly good corrosion resistance, bright and beautiful surface.
3. Good ventilation, lighting, thermal, anti-explosion, and anti-skid performance.
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width×thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width×thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
